Why Choose MetalWorks Lay-In
Cost-effective exposed grid system with easy access and modern aesthetics.
Standard Exposed Grid
Drops into any standard 15mm or 24mm T-grid. Simple and universal installation.

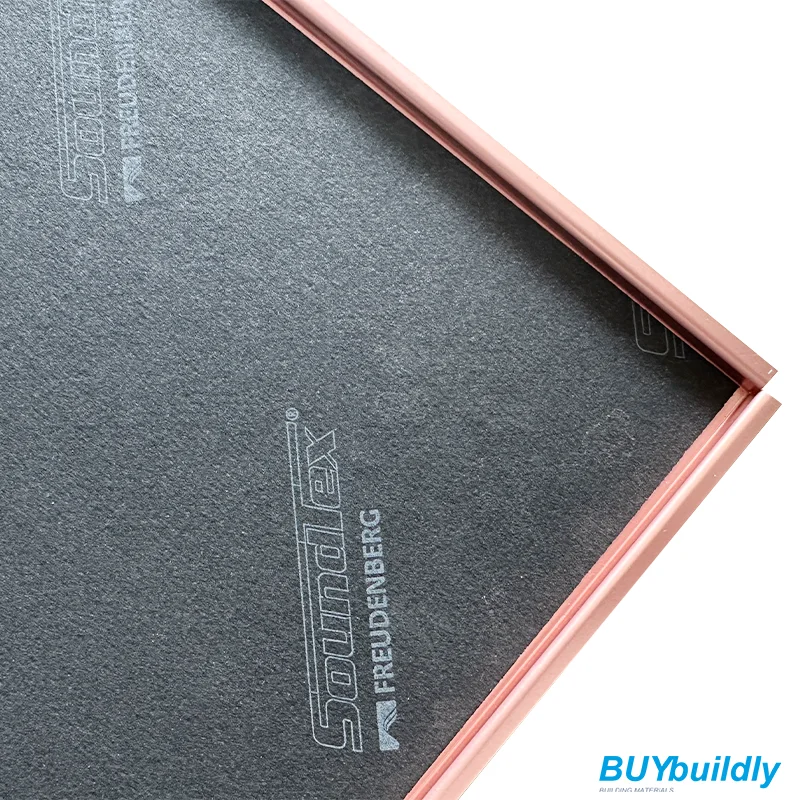

NRC 0.70
Effective sound absorption with acoustic fleece for comfortable interiors.
Easy Lift-Out Access
Simply lift out panels for full plenum access. No special tools required.
Class A Fire Rated
GB8624-2012 Class A. Safe for offices, hospitals, schools, and public spaces.
Cost Effective
Lower installed cost vs concealed systems. Ideal for large-area commercial projects.
Eco Friendly
Recyclable metal material. Durable and long lifespan with low maintenance.
Product Specifications
Technical data for project specification and planning.
☰ Available Sizes
| Module | Dimensions (mm) |
|---|---|
| Square | 600 × 600 / 300 × 300 |
| Rectangle | 1200 × 300 |
| Rectangle | 1200 × 400 |
| Rectangle | 1200 × 600 |
| Custom | Available on request |
⚙ Material Options
| Material | Weight |
|---|---|
| Galvanised Steel | ≈ 4.04 kg/m² |
| Aluminium | ≈ 5.66 kg/m² |

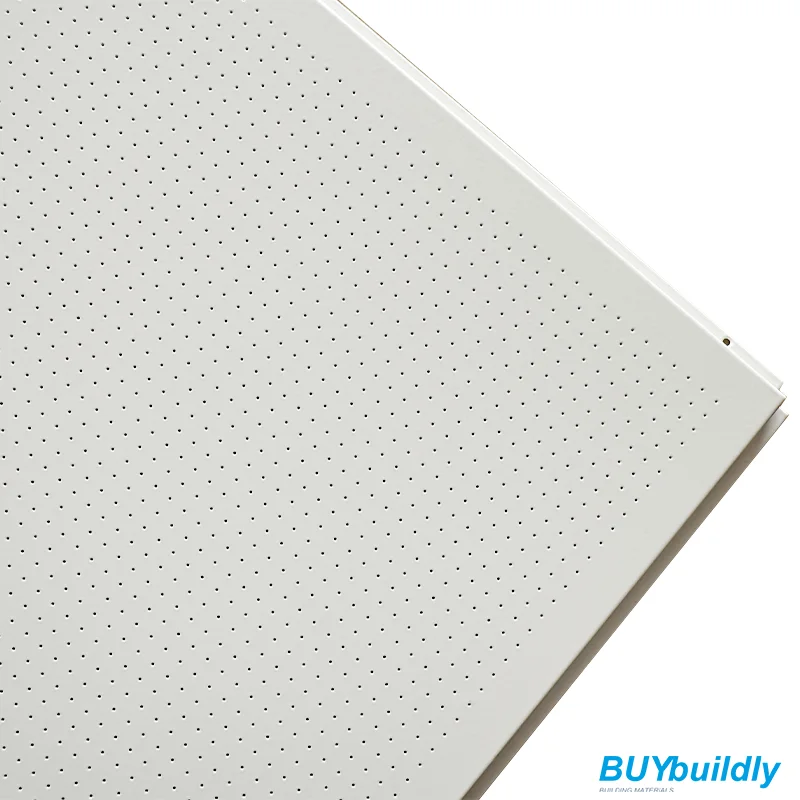

◎ Perforation Patterns
| Type | Code | Open Area |
|---|---|---|
| Unperforated | M1 | 0% |
| Extra Micro | M3 | 1.5% |
| Micro | M9 | 9.6% |
| Standard | M10 | 16% |
| Micro | M2 | 19.1% |
★ Performance
| Property | Value |
|---|---|
| Sound Absorption (NRC) | 0.70 |
| Fire Rating (GB8624) | Class A |
| Humidity Resistance | Up to 100% RH |
| Light Reflectance | ≥ 75% |
| Grid Compatibility | 15mm / 24mm T-grid |
Colors & Finishes
Standard powder-coated finishes. Custom RAL colors and wood grain on request.
Standard Colors
Custom RAL Colors
Any RAL color for brand-matched or design-specific ceiling schemes.
Wood Grain Effects
Natural wood finishes for warm and inviting interior spaces.
Anti-Microbial Coating
Bioguard finish for healthcare, labs, and hygiene-sensitive areas.
Application Areas
Versatile and cost-effective for a wide range of commercial interiors.
