Why Choose Armstrong ANF
Non-directional textured surface with rolled pattern. Easy installation, cost-effective solution for general commercial ceilings.
NRC 0.45 / CAC 30dB
Good sound absorption and attenuation. Effective noise reduction for offices and public spaces.
85% Light Reflectance
High light reflectance brightens interiors. Helps reduce lighting energy consumption.
RH90 Humidity Resistance
Up to 90% relative humidity resistance. Suitable for most indoor environments.
A2 Fire Rated
GB8624-2012 A2 rated. Non-combustible mineral fibre core for fire safety compliance.
Non-Directional Pattern
Rolled texture with no directionality. Reduces installation time and material waste.
Eco-Friendly
Contains recycled content. LEED compatible. China Environmental Label certified. No asbestos.
Product Specifications
Technical data for specification and project planning.
☰ Model & Size Reference

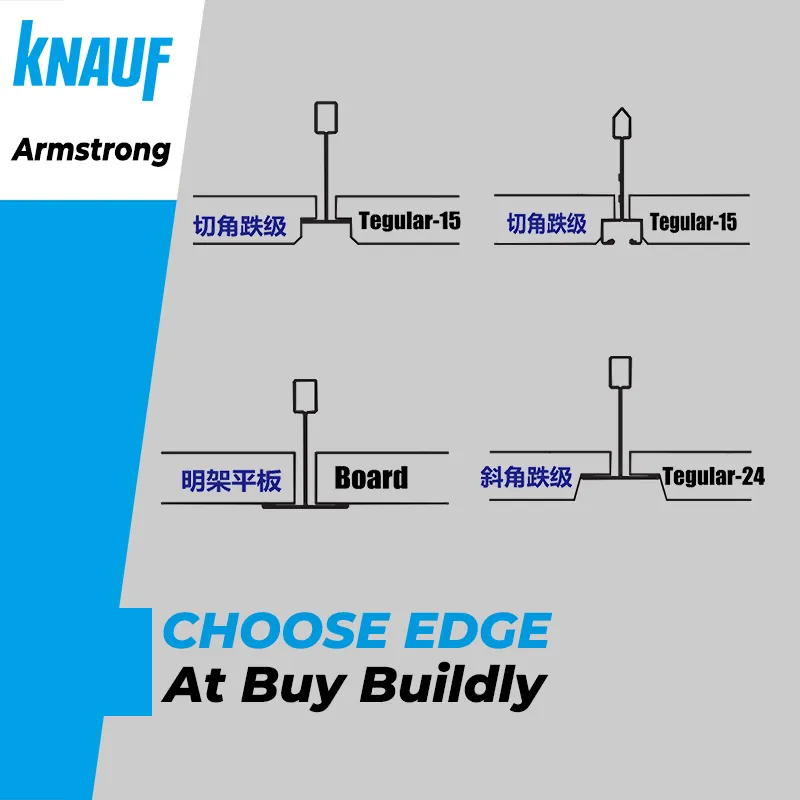

| Model | Edge | Size (mm) |
|---|---|---|
| W1591 | Board | 600 × 600 × 14 |
| W1592 | Board | 600 × 600 × 14 |
| W1593 | Board | 1200 × 600 × 14 |
| W1594 | Board | 1200 × 600 × 14 |
| W1595 | Tegular 24 | 600 × 600 × 14 |
| W1596 | Tegular | 600 × 600 × 14 |
| W1597 | Tegular 15 | 600 × 600 × 14 |
⚙ Performance
| Item | Value |
|---|---|
| Thickness | 14mm |
| NRC | 0.45 |
| CAC | 30 dB |
| Light Reflectance | 85% |
| Fire Rating | GB8624-2012 A2 |
| Humidity Resistance | RH90 |
| Weight | ≈ 2.8 kg/m² |
| Perforation | 30% open area |
Application Areas
Versatile mineral ceiling tile for general commercial interiors requiring good acoustics and humidity resistance.
