Why Choose METALWORKS™ VECTOR System
Patented semi-concealed grid system combining monolithic visual with practical accessibility.
Semi-Concealed Grid
Patented One Way system. Visible main beam, concealed cross tees. Premium monolithic look.
NRC Up to 0.90
With acoustic infill. Superior sound absorption for open offices and public spaces.

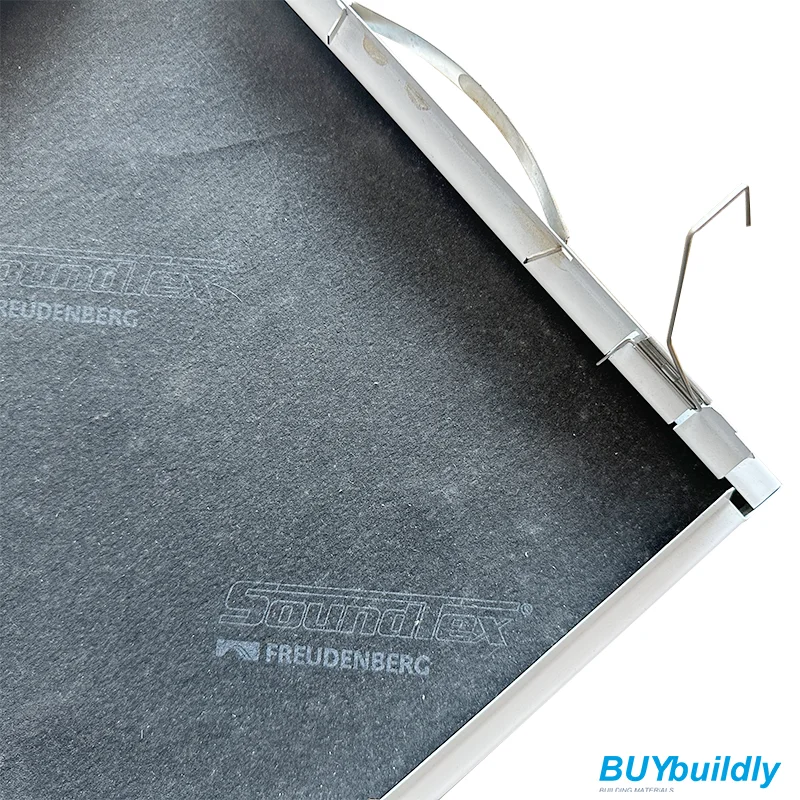

Hook-On, Easy Access
Panels hook on and lift off without tools. Full plenum access for maintenance.
Class A Fire Rated
GB8624-2012 Class A. Safe for offices, healthcare, and public buildings.
30% Recycled Content
Green Tag Level A certified. Sustainable choice for green building projects.
Chilled Beam Compatible
Optional Chilled Beam integration for energy-efficient HVAC design.
Product Specifications
Technical data for specification and project planning.
☰ Available Sizes
| Module | Dimensions (mm) |
|---|---|
| Standard | 1200 × 300 |
| Standard | 1350 × 450 |
| Standard | 1500 × 300 |
| Standard | 1500 × 500 |
| Custom | Available on request |
⚙ Material & Edge
| Item | Specification |
|---|---|
| Material | Galvanised Mild Steel |
| Edge Detail | One Way Hook On |
| Grid System | 32mm Flat Faced / Top Hat |
◎ Perforation Options
| Type | Acoustic Performance |
|---|---|
| Plain (unperforated) | Base panel |
| Standard perforation | With acoustic fleece |
| Custom perforation | Available on request |
★ Performance
| Property | Value |
|---|---|
| Sound Absorption (NRC) | Up to 0.90 (with infill) |
| CAC (with infill) | Up to 38–40dB |
| Fire Rating (GB8624) | Class A |
| Recycled Content | ≥ 30% |
| Certification | Green Tag Level A |
Colors & Finishes
Standard powder-coated finish. Custom colours and wood grain available on request.
Standard Color
Custom RAL Colors
Any RAL colour available for brand-matched or design-specific ceiling schemes.
Wood Grain Effects
Realistic wood-look finishes for warm, natural ceiling aesthetics in premium spaces.
Anti-Microbial Coating
Bioguard finish option for healthcare and hygiene-sensitive environments.
Application Areas
Designed for A-Grade commercial projects requiring sophisticated aesthetics and high performance.
