Why Choose MetalWorks Clip-In
Engineered for performance. Designed for beauty.
Fully Concealed Grid
Hidden suspension system creates a clean, seamless monolithic ceiling surface.
NRC 0.70

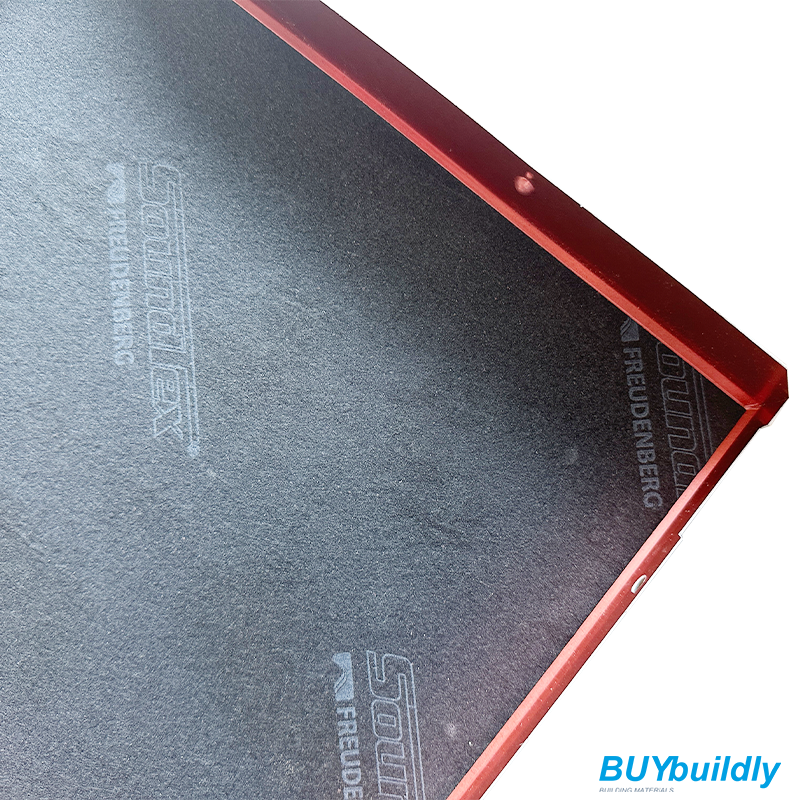

Excellent sound absorption with acoustic fleece. Reduces noise for comfort.
100% Downward Access
Full access to plenum space with a simple panel removal tool.
Class A Fire Rated
Meets GB8624-2012 Class A standard. Safe for all commercial applications.
99% Humidity Resistance
Performs reliably in high-humidity environments without warping.
30% Recycled Content
Sustainable choice with Green Tag certification and recycled steel.
Product Specifications
Detailed technical data for project planning.
Available Sizes
| Module | Dimensions (mm) |
|---|---|
| Square | 600 × 600 / 300 × 300 |
| Rectangle | 1200 × 300 |
| Rectangle | 1200 × 400 |
| Rectangle | 1200 × 600 |
| Custom | Available on request |
Material Options
| Material | Weight |
|---|---|
| Galvanised Steel | ≈ 4.74 kg/m² |
| Aluminium | ≈ 6.63 kg/m² |

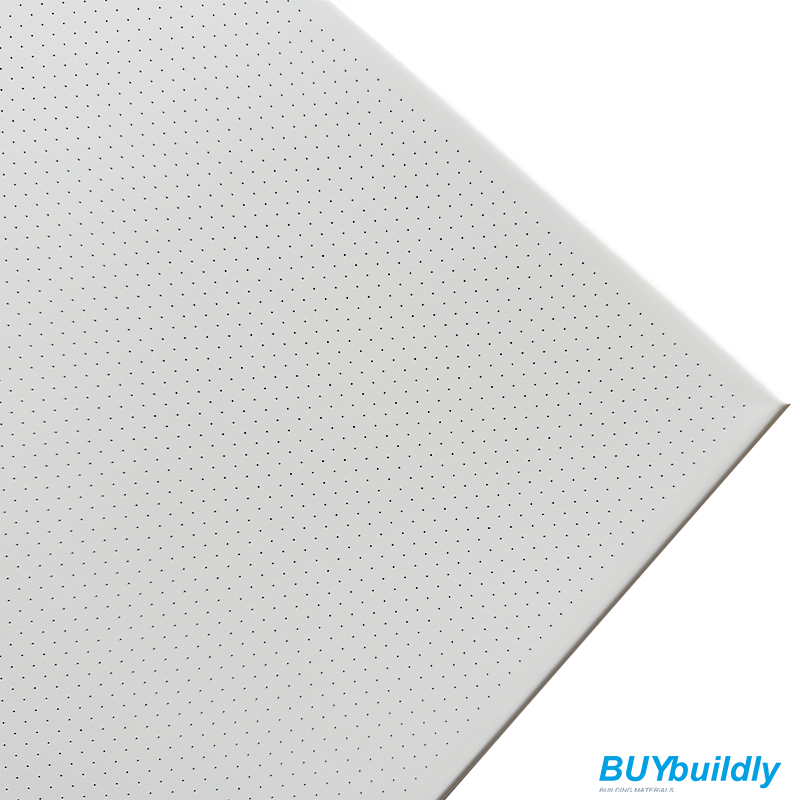

Perforation Patterns
| Type | Code | Open Area |
|---|---|---|
| Unperforated | M1 | 0% |
| Extra Micro | M3 | 1.5% |
| Micro | M9 | 9.6% |
| Standard | M10 | 16% |
| Micro | M2 | 19.1% |
Performance
| Property | Value |
|---|---|
| Sound Absorption (NRC) | 0.70 |
| Fire Rating (GB8624) | Class A |
| Humidity Resistance | Up to 99% RH |
| Recycled Content | Up to 30% |
| Light Reflectance | ≥ 75% |
Colors & Finishes
Standard powder-coated finishes. Custom RAL colors and wood grain effects on request.
Standard Colors
Custom RAL Colors
Any standard RAL color available. Perfect for brand-matched interiors.
Wood Grain Effects
Realistic wood finishes for warm, natural ceiling aesthetics.
Anti-Microbial Coating
Bioguard finish for healthcare and hygiene-sensitive spaces.
Application Areas
Versatile solution for premium commercial interiors.
