Why Choose Armstrong PeakForm 888
24mm (15/16") exposed T-bar grid system with Superlock staked-on clip connection. Double-web hot-dipped galvanised steel delivers medium-duty performance for a wide range of commercial ceiling applications.

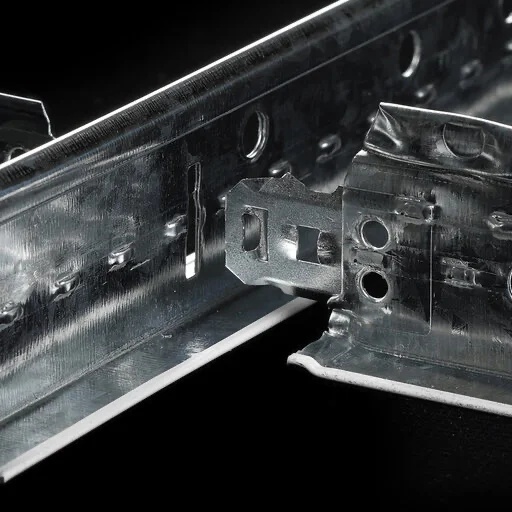

Superlock Connection
Staked-on bulb clip locks cross tees securely with an audible click. XL splice plate reinforces main bar joints for rigid, stable connections throughout the grid.

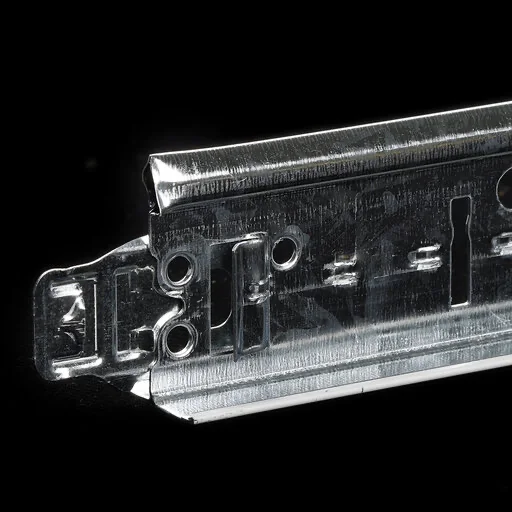

24mm Double-Web Profile
Double-web hot-dipped galvanised steel construction. Raised profile engineered for superior torsional rigidity and reliable medium-duty load performance.
White Polyester Finish
Hot-dipped galvanised steel with baked white polyester coating. Clean, bright finish reflects ceiling light and complements a wide variety of ceiling tile styles.
24mm Standard T-Bar
24mm (15/16") standard-width exposed grid profile for broad commercial compatibility. Works seamlessly with standard 24mm-compatible ceiling tiles and panels.
Medium Duty — 14.27 kg/m
14.27 kg/m Intermediate Duty load capacity. Stronger than light-duty systems — handles heavier ceiling tiles and wider hanger spacing with confidence.
AS/NZS 2785 Compliant
Complies with AS/NZS 2785:2020 for suspended ceiling design and installation. Trusted performance for mainstream commercial ceiling projects.
Product Specifications
Technical data for specification and project planning.
☰ Grid Components
| Component | Profile | Length |
|---|---|---|
| Main Bar | 24mm × 35mm | 3600mm / 3000mm |
| Cross Tee | 24mm × 27mm | 1200mm / 600mm |
| Wall Angle | 22mm × 22mm | 3600mm / 3000mm |
⚙ Performance
| Item | Value |
|---|---|
| System Type | 24mm (15/16") Exposed Grid |
| Load Rating | Intermediate Duty — 14.27 kg/m |
| Hanger Spacing | 1200mm |
| Color | White |
| Material | Double-web hot-dipped galvanised steel + polyester coating |
| Connection | Superlock staked-on clip + XL splice plate |
| Recycled Content | ~25% |
Application Areas
Versatile 24mm exposed grid suitable for a broad range of commercial ceiling installations. Compatible with Armstrong mineral fibre, metal, wood, and specialty ceiling panels.
