Why Choose Armstrong SELECT 1000
24mm (15/16") exposed T-bar grid system with coupling-style connection. A cost-effective solution for standard commercial ceiling installations with reliable performance.

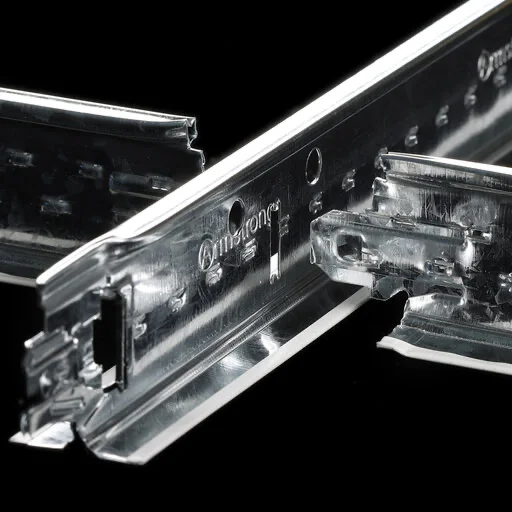

Coupling Connection
Coupling-style main bar connection with integral cross tee clip. Simple and reliable mechanical joint. Cross tees attach via flush-cut，工程连接便捷。
White or Black Finish
Hot-dipped galvanised steel with baked polyester coating. Available in white or black — choose black for a dramatic shadow-line ceiling or white for a clean, bright appearance.
24mm Standard T-Bar
24mm (15/16") exposed grid profile — the standard width for broad commercial compatibility. Works with a wide range of mineral fibre and specialty ceiling tiles.

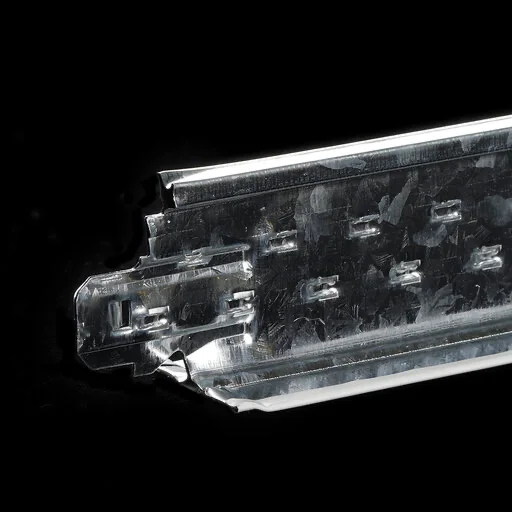

Coupling + Splice Joint
Main bars join via internal coupling sleeve for clean alignment. Cross tees use integral clip for fast on-site assembly without special tools.
Light Duty — 8.52 kg/m
8.52 kg/m Intermediate Duty load capacity. Suitable for standard ceiling tile weights. Hanger spacing up to 1200mm for reliable structural support.
AS/NZS 2785 Compliant
Complies with AS/NZS 2785:2020 for suspended ceiling design and installation. Reliable performance for mainstream commercial ceiling projects.
Product Specifications
Technical data for specification and project planning.
☰ Grid Components
| Component | Profile | Length |
|---|---|---|
| Main Bar | 24mm × 32mm | 3000mm |
| Cross Tee | 24mm × 32mm | 1200mm / 600mm |
| Wall Angle | 22mm × 22mm | 3600mm / 3000mm |
⚙ Performance
| Item | Value |
|---|---|
| System Type | 24mm (15/16") Exposed Grid |
| Load Rating | Light Duty (ID) — 8.52 kg/m |
| Hanger Spacing | 1200mm |
| Color Options | White Black |
| Material | Hot-dipped galvanised steel + polyester coating |
| Connection | Internal coupling + integral cross tee clip |
Application Areas
Ideal for standard commercial ceiling installations where a cost-effective, reliable exposed grid solution is required. Compatible with most 24mm-compatible ceiling tiles.
