Armstrong PeakForm SUPRAFINE 3000 — 15mm narrow T-bar exposed grid system with hot-dipped galvanised steel and white polyester finish. ID 19.76 kg/m, LD 8.52 kg/m. Main bars available in 3600mm and 3000mm. AS/NZS 2785 compliant. Buy from BuyBuildly.
15mm (9/16") narrow T-bar exposed grid system. Streamlined profile delivers a clean, modern ceiling aesthetic with reliable structural performance.

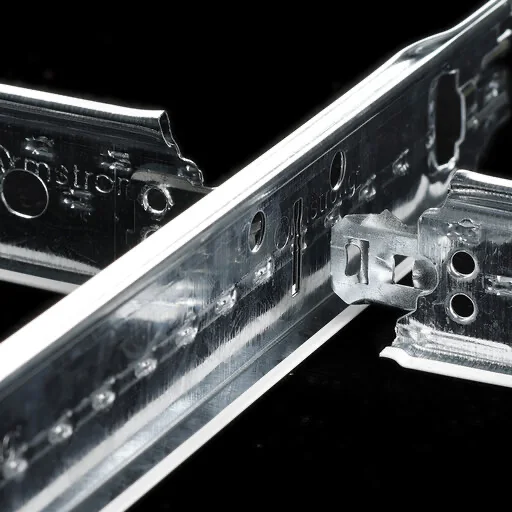

Patented bulb-to-bulb clip locks cross tees securely with an audible click. Staked-on clip and XL steel splice ensure rigid, reliable joints throughout the grid.
Raised double-web profile with rotary-stitched construction. Engineered for superior torsional rigidity and long-term structural stability under ceiling loads.
Hot-dipped galvanised steel with baked polyester coating. Clean white finish reflects light and complements most ceiling tiles. Corrosion-resistant and easy to maintain.
Slim 15mm exposed grid profile creates a refined, minimal ceiling appearance. Ideal for contemporary interiors where a streamlined look is preferred over wider grid systems.
19.76 kg/m Intermediate Duty / 8.52 kg/m Light Duty. Accommodates a wide range of ceiling tile weights with flexible hanger spacing up to 1500mm for light-duty applications.
Complies with Australian/New Zealand standard AS/NZS 2785:2020 for suspended ceiling design and installation. Suitable for seismic design requirements.
Technical data for specification and project planning.
| Component | Profile | Length |
|---|---|---|
| Main Bar (43mm) | 15mm × 43mm | 3600mm / 3000mm |
| Main Bar (32mm) | 15mm × 32mm | 3600mm / 3000mm |
| Cross Tee | 15mm × 27mm | 1200mm / 600mm |
| Wall Angle | 19mm × 19mm | 3000mm |
| Item | Value |
|---|---|
| System Type | 15mm (9/16") Exposed Grid |
| Intermediate Duty | 19.76 kg/m |
| Light Duty | 8.52 kg/m |
| Hanger Spacing (ID) | 1200mm |
| Hanger Spacing (LD) | 1500mm |
| Slot Finish | White |
| Material | Hot-dipped galvanised steel + polyester coating |
| Connection | Superlock Staked-on clip + XL splice |
| Recycled Content | ~25% |
Compatible with a wide range of Armstrong mineral fibre, metal, wood, and specialty ceiling panels for versatile commercial and residential installations.
